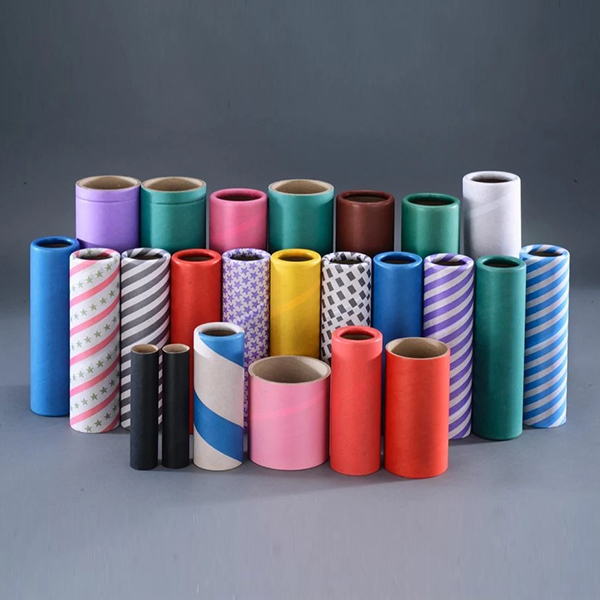

Paper Tubes

Through research-driven product development and quality enhancements, our paper tubes provide performance benefits and a cost advantage to customers.

Biltube leverages its R&D capabilities and proprietary technology to achieve the perfect bonding of coreboard layers for optimum strength.

Our tubes offer high compression resistance and superior performance for maximum productivity. We ensure a high degree of dimensional stability through a controlled drying process.

Superior surface finish provides smooth transfer of yarn, preventing breakage and minimizing wastage during unwinding.


Features

  • Dimensional stability for high speeds
  • Optimum strength to withstand tension
  • Superior performance for maximum productivity
  • Perfect notches and grooves
  • Superior surface finish

Enquire Now

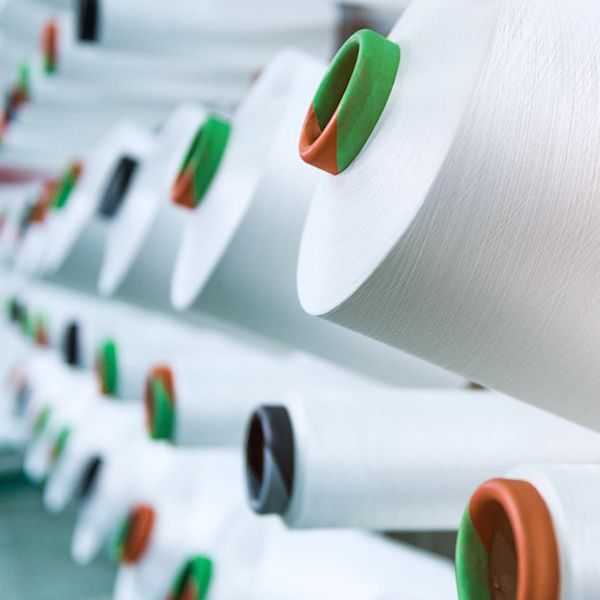

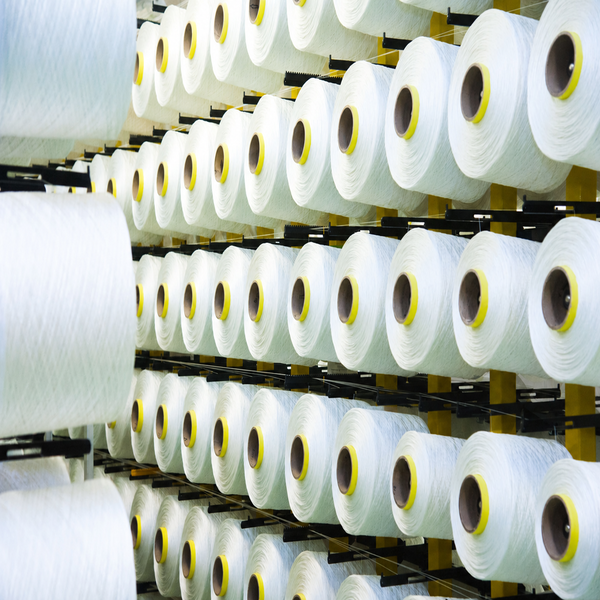

Paper Tubes for winding of Partially Oriented Yarn (POY), Fully Drawn Yarn (FDY) and Nylon Yarn


  • POYmega
  • FDYzip
  • SDYpace
  • DTYplus
  • NFYstrong
  • DTstable

Series of POY Carriers

Applications

A product offered with 20 years of experience by Biltube. It is suitable for fine, coarser as well as micro denier polyester filament yarn. This series of POY carriers was developed by the Biltube research team to deliver best possible yields and recyclability.

Salient Features
  • Dimensional stability for automated winders
  • Auto doffing efficiency over 99.5%
  • Smooth surface for complete unwinding of yarn
  • Excellent horizontal strength to sustain yarn tension and package weight
  • Excellent vertical strength to eliminate damage during transportation and auto handling
  • Excellent tail end efficiency
  • Round edges for smooth unwinding
  • Bleed free Parchment paper for easy identification
  • Recyclability
Standard Product Range
Parameter Min Max
ID 75 mm 125 mm
Thickness 6 mm 13 mm
Length 75 mm 287.5 mm
Weight 75 gms 490 gms
Moisture 8% 9%
Spinning Speed — 4000 mpm
Yarn Tension 8 gms/denier 30 gms/denier
Denier Range 100 500
Radius ID 1R 2R
Radius OD 2R 3R
Notch/Slit Customised notches for varying technologies and wide range of deniers
Colour Available in 60+ range of VP/GP papers
Winding Technologies Suitable for Barmag, Dupont, Enka, Murata, Teijin, Toray, Unitika, Zimmer

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.

Series for FDY Technology Winders

Applications

For the latest technology winders with speeds up to 7000 mpm for micro filament fully drawn yarn, Team Biltube offers a product that is tailor-made to give quality and consistency to yarn manufacturers.

Salient Features
  • Dimensionally stable
  • Ideally suitable for latest automated winders
  • Special top layer papers and adhesives to prevent tube bursting at start up
  • Extra hard tube to withstand yarn tension at 7000 mpm
  • High vertical strength for damage free transportation and storage
  • 3 R Edge Polish for direct application on weaving
  • Modern technology for consistent notch profile, depth and location
  • Low tolerance length for consistent location of notch at string up
  • Bleed free color parchment papers for easy identification
Standard Product Range
Parameter Min Max
ID 94 mm 120 mm
Thickness 6 mm 8 mm
Length 75 mm 200 mm
Weight 75 gms 460 gms
Moisture 8% 9%
Spinning Speed — 7000 mpm
Yarn Tension 8 gms/denier 30 gms/denier
Denier Range 50 100
Radius ID 1R 2R
Radius OD 2R 3R
Notch/Slit Customised notches for varying technologies and wide range of deniers
Colour Available in 60 plus range of VP/GP papers
Winding Technologies Suitable for Barmag, Dupont, Enka, Murata, Teijin, Toray, Unitika, Zimmer

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.

Series for Modern SDY winding

Applications

For today's automated winders with high speeds up to 7000 mpm for spun drawn yarn, Team Biltube proudly offers this high performance tube with close tolerances to offer unmatched productivity.

Salient Features
  • Dimensionally stable
  • Ideally suitable for Auto transfer
  • Special top layers and adhesives to prevent the tube bursting at the start up
  • Extra hard tube to withstand yarn tension at 7000 mpm
  • High vertical strength for damage free transportation and storage
  • Bleed free color parchment papers for easy identification
  • 3 R Edge Polish for direct application on weaving
  • Most modern technology for consistent notch profile, depth and location
  • Low tolerance length for consistent location of notch at string up
Standard Product Range
Parameter Min Max
ID 75 mm 120 mm
Thickness 6 mm 13 mm
Length 115 mm 282 mm
Weight 215 gms 460 gms
Moisture 8% 9%
Spinning Speed — 7000 mpm
Yarn Tension 8 gms/denier 30 gms/denier
Denier Range 50 75
Radius ID 1R 2R
Radius OD 2R 3R
Notch/Slit Customised notches for varying Customised notches for Technologies and wide range of deniers
Colour Available in 60 plus range of VP/GP papers
Winding Technologies Suitable for Barmag, Dupont, Enka, Murata, Teijin, Toray, Unitika, Zimmer

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.

Series for Quality DTY Tubes

Applications

Manufacturing products with consistency to give highest operational efficiency and a wide choice are specialities of our team. Cost competitiveness to meet market dynamics is at the core of all developments at Biltube.

Salient Features
  • Specially designed bull nose suitable for perfect end cap fittings
  • Straightness to avoid vibration during yarn winding
  • Smooth surface to eliminate layer falling
  • High strength to sustain pressure during long doffing time
  • Ideally suitable for the speed from 800 mpm - 1100 mpm
  • "C" cut radius at straight end for Open-end cap fitting
  • High vertical strength for damage free transportation and storage
  • Exceptionally good dimensional stability
  • Available in range and combinations of bleed free VP/GP papers
Standard Product Range
Parameter Min Max
ID Open End 51 mm 69 mm
ID Bull Nose End 42 mm 58 mm
Thickness 2 mm 6 mm
Length 160 mm 290 mm
Weight 140 gms 220 gms
Moisture 8% 9%
Spinning Speed 800-1100 mpm
Denier Range 50 - 500
Notch/Slit Customised notch for varying technologies and wide range of deniers
Colour Available in 80 plus range of GP/VP papers
Winding Technologies Suitable for Barmag, Murata, RPR, Scrag, Teijin

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.

Series for Shrink-free NFY winding

Applications

Team Biltube has designed this shrinkage-free paper bobbin for nylon filament, tyre cord and other industrial yarn. This product of Biltube avoids sagging for effective recycling.

Salient Features
  • Precision tube design in consultation with technology provider
  • Special heat resistant adhesive and high ply-bond papers for extra strength
  • Greater recyclability
  • Tube designed to avoid sagging and dimensional changes after winding yarn
  • High vertical strength to protect against damage in transportation and storage
  • Perfect bonding of layers to sustain with contact roller pressure
  • Bottom layer hardness to resist chuck pressure at high speed winding
  • Special notches of the type V notch, Y notch, rectangular, Window notch are designed for higher deniers
Standard Product Range
Parameter Min Max
ID 73 mm 94 mm
Thickness 7 mm 15 mm
Length 150 mm 300 mm
Weight 300 gms 600 gms
Moisture 8% 8.5%
Spinning Speed — 4000 mpm
Yarn Tension 100 gms/denier 200 gms/denier
Denier Range 1200 1800
Notch/Slit Customised notches for varying technologies and wide range of deniers
Colour Available in 60 plus range of GP/VP paper

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.

Series for DT steady winding

Applications

DT spinning requires vibration-free winding. Team Biltube has designed this speciality bobbin for stable DT processing.

Salient Features
  • Perfectly straight and parallel tube, the essence of vertical tube winding
  • Vibration free tube for center less holding application
  • Accurate dimensions with stringent tolerance limits
  • Smooth surface for desired yarn pattern
  • Rough inner surface to eliminate slippage during development of centrifugal force
  • Even weight distribution through out the length for vertical rotation at a spinning speed of 1100 mpm
  • Uniform moisture control through out the tube to guard against shrinkage
  • Customised drying to avoid tube bending
Standard Product Range
Parameter Min Max
ID 32 mm 55 mm
Thickness 3.5 mm 5 mm
Length 350 mm 420 mm
Weight 250 gms 320 gms
Moisture 8% 8.5%
Spinning Speed A 1100 mpm
Colour Available in 60 plus range GP/VP papers

Biltube Textile bobbins are high on strength, performance and dimensional stability. These tubes are manufactured in state of the art plants to ensure global benchmarked quality.
